Sliding systems
Sliding systems are a response to the aesthetic, insulation and security needs. By using new techniques for partition and traversed systems, without the significant investment you can enclose residential, employment, commercial areas, different size glass balconies, and other types of sliding elements.
You can install the door lock, to mount blinds and other accessories to the partition systems. You can also choose different patterns and shades glass. In this way, the partitions will become functional, durable and modern interior and exterior detail of Your building.
We are partners with „Reynaers Aluminium“ since 1995. For two decades „Aveplast“ had a chance make sure of high quality „Reynaers Aluminium“ sliding systems.

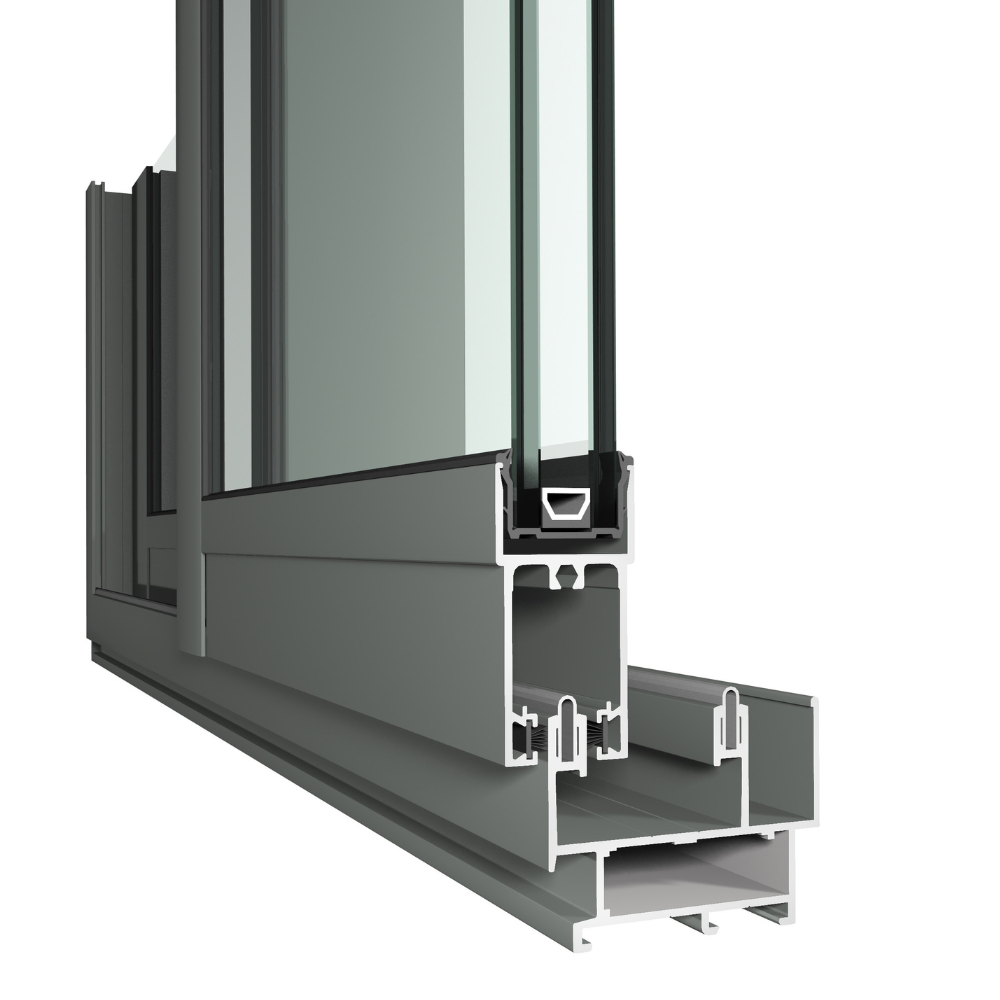

CP 45Pa sliding systems – light, design and functionality
The CP 45Pa is a non-insulated sliding system that has been designed to respond to new demands for aesthetics and security. The system is available in functional and softline design. The profile width is reduced to a minimum allowing a maximum of light into the building. CP 45Pa integrates the latest techniques, offering a very competitive solution.
PERFORMANCES | |
Air tightness | Up to 600 Pa (class 4) |
Water tightness | Up to 250 Pa (class 6A) |
Wind load resistance | Up to 1600 Pa (class 4) |
Please click on the picture to see entire opening.
––

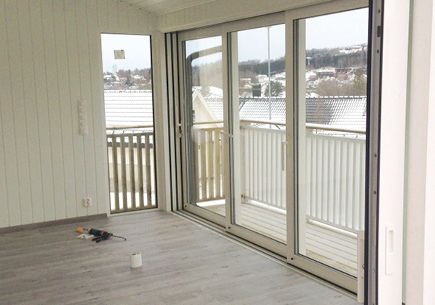

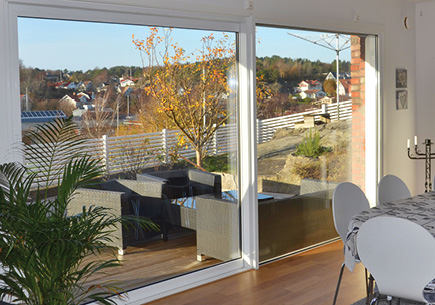

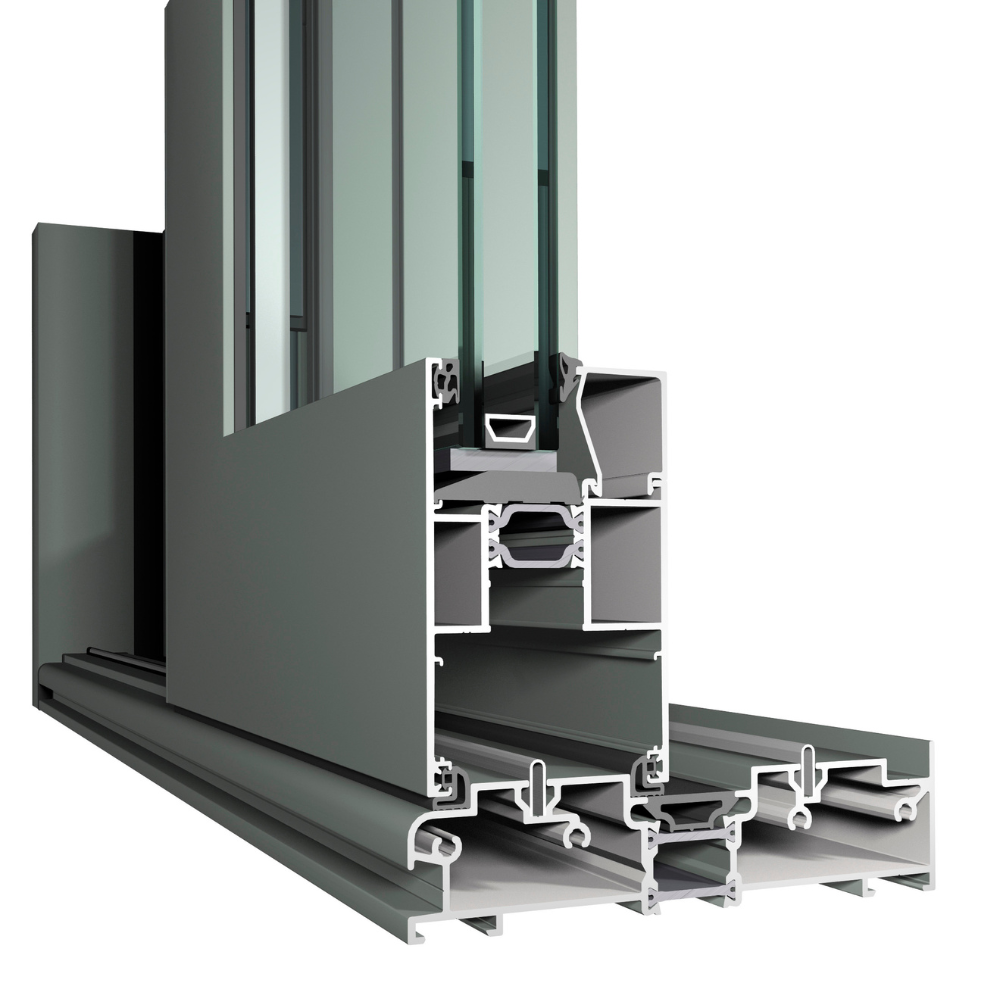

CP 130 sliding systems – design, functionality, burglar resistance
CP 130 sliding and lift & slide system is special because of various possibilities along with high performance and enhanced burglar resistance. It’s functional, economical and offers aestetic solution with the middle section. This sliding system can weight glass with a weight up to 300 kg.

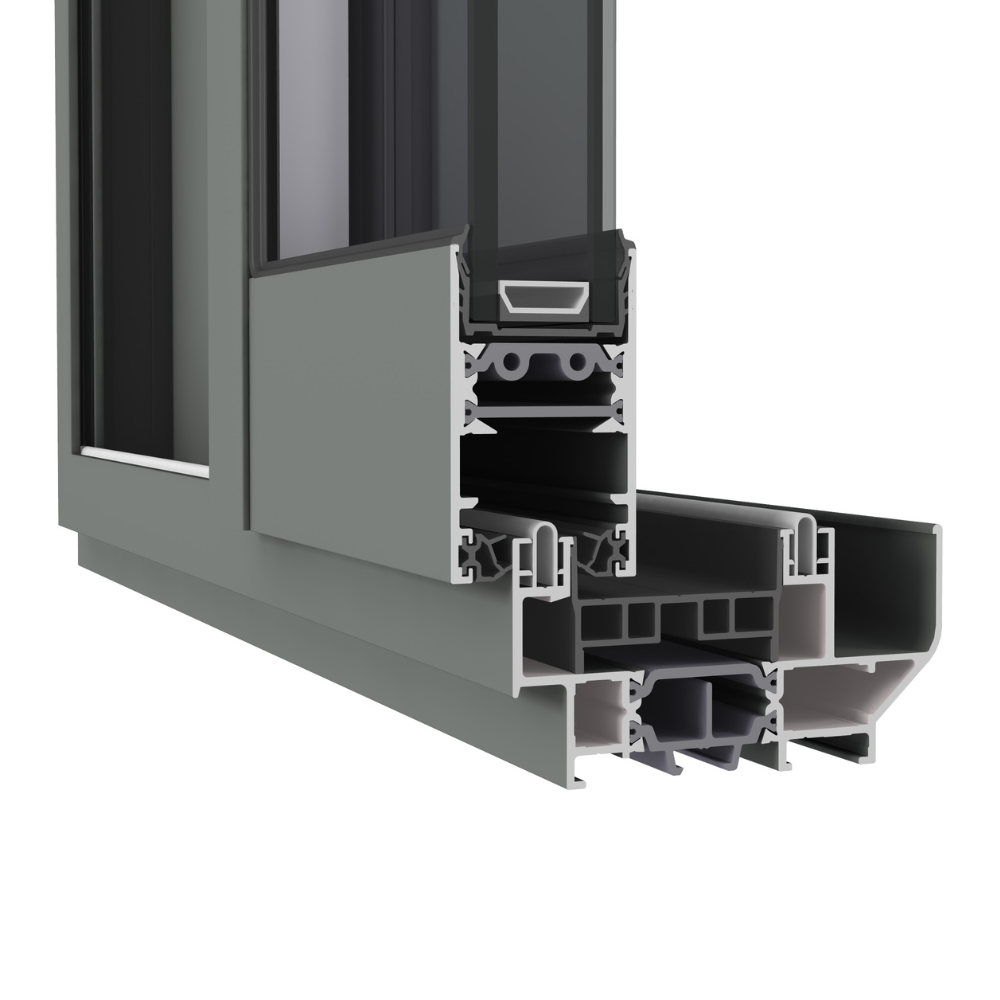

It is worth mentioning that CP 130 is based on CS 68 system, and as such, further improves fabrication time, logistics and compatibility with a current product range.
PERFORMANCES | |
Air tightness | Up to 600 Pa (class 4) |
Anti-burglar | WK 2 (European standard ENV 1627 – ENV 1630) |
Thermal insulation | Uf-value down to 2,78 W/m2K, depending on the frame/vent combination |
Water tightness | Up to 600 Pa (class 9A) |
Wind load resistance | Up to 1200 Pa (class 3) |
Please click on the picture to see entire opening.
–

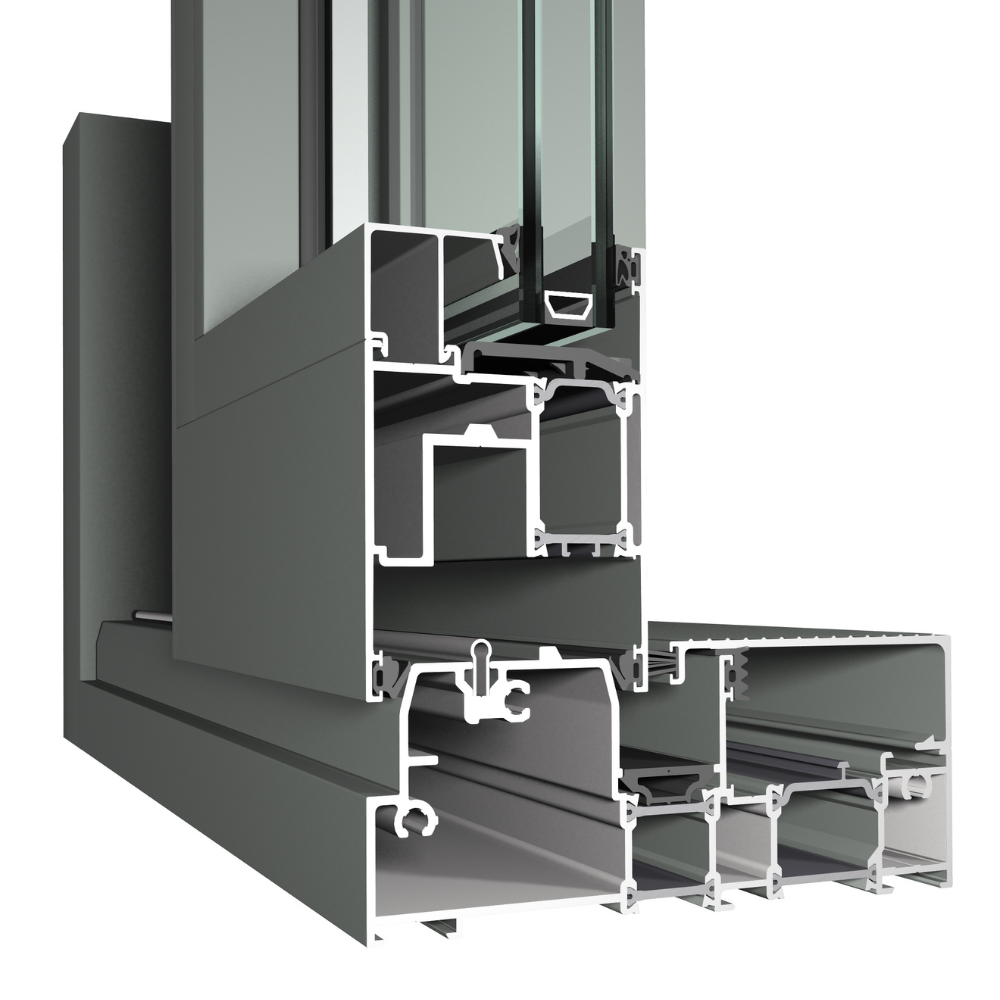

CP 155 sliding systems – high thermal insulation, functionality and comfort
CP 155 is a thermally insulated sliding system with a vent weight up to 400 kg and height up to 3 meters. The sophisticated concept fulfils the user’s high expectations of optimum quality, high insulation and ease of operation. The new and improved CP 155 can be upgraded with High Insulation that can be applied to all CP 155 variants to achieve even better insulation values.
The system is available with a low threshold that creates a perfect continuity between the indoor and outdoor spaces and improves the accessibility to the building. The new CP 155 has a Slim Line middle section for a slimmer appearance. Automatic opening solutions for maximal comfort are also available.
PERFORMANCES | |
Acoustic performance | Rw (C;Ctr) = 35 (-2; 5) dB / 42 (-1;-3) dB, depending on the glazing type |
Air tightness | Up to 600 Pa (class 4) |
Anti-burglar | WK 2 (European standard ENV 1627 – ENV 1630) |
Thermal insulation | Uf-value down to 2,2 W/m2K, depending on the frame/vent combination |
Water tightness | 900 Pa (class E900) |
Wind load resistance | Up to 1600 Pa (class 4) |
Please click on the picture to see entire opening.
–
Please contact “Aveplast” manager for further information. We are always ready to consult and help!
